9. Region error check

In developing a complex geometry, it is difficult to define the geometry without mistakes such as double-defined or undefined regions. Correspondingly, a function for automatically detecting double-defined or undefined regions was implemented after version 2.67. This geometry check function works when specifying a tally for generating the two-dimensional view of a geometry: such tallies include [t-gshow], [t-rshow], and other tallies involving setting axis=xy,yz,xz or the gshow (icntl=8) or rshow (icntl=10) options.

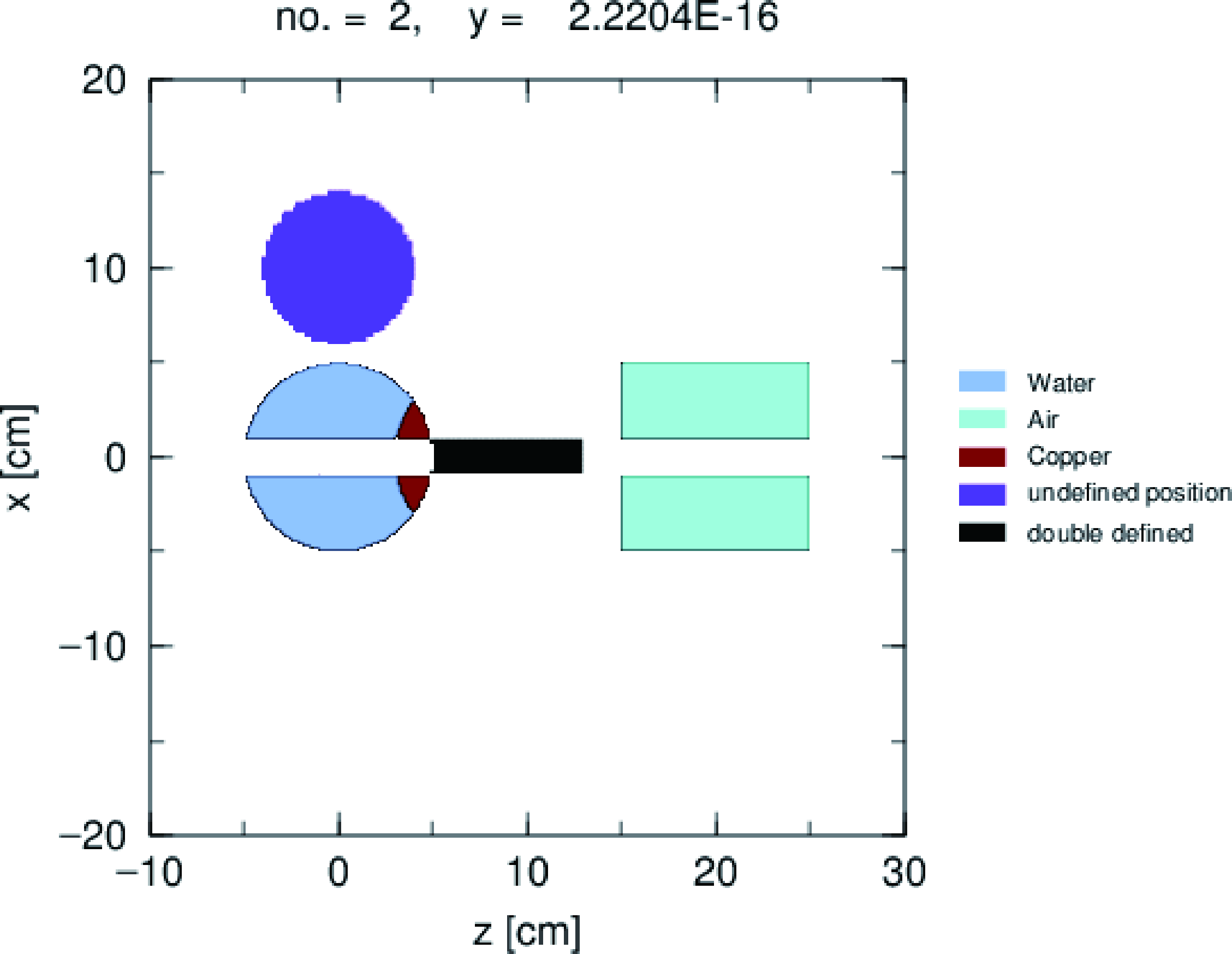

Fig. 9.1 shows an example of a two-dimensional view with geometry errors. Double-defined regions are painted in black, while undefined regions are in purple. When an undefined region is detected, its surrounding regions may disappear from the figure.

../_images/RegionCheck.png

Fig. 9.1 Output including geometry errors.

When PHITS detects a geometry error, a geometry error file named [original-tally-name].err is output ([original-tally-name] indicates the original tally output file name without the extension). In this file, the \((x,y,z)\) coordinates together with the overlapping cell numbers are written as follows:

Listing 9.1 Example of geometry error output
Errors of cell definition in EPS Page No. =   1
Overlapped Cell IDs  x, y, z  coodinates
(Cells 0       0  indicate undefined region)
     100     102    -4.847761E+00  1.234568E-11 -1.211940E+00
       0       0    -4.241791E+00 -2.500000E+00 -8.079602E-01

The first line indicates that cell numbers 100 and 102 overlap at the point x=-4.847761E+00, y=1.234568E-11, z=-1.211940E+00. The second line indicates that an undefined region is detected at the point x=-4.241791E+00, y=-2.500000E+00, z=-8.079602E-01.

Geometry errors can easily be found using this geometry check function. Note that the function can detect geometry error only when an error occurs on the grid points of the xyz mesh of the tally, while geometry errors outside the tally region cannot be detected. Even in the tally region, a small error region might also remain undetected if the region does not contain a grid point.
