Physical Models > JAM
JAM is a Hadronic Cascade Model, which explicitly treats all established hadronic states including resonances with explicit spin and isospin as well as their anti-particles. We have parameterized all Hadron-Hadron Cross Sections, based on Resonance Model and String Model by fitting the available experimental data. Reference: Y.Nara et.al. Phys. Rev. C61 (2000) 024901 Au+Au 200GeV/u in cm 119 kinds of Mesons 170 kinds of Baryons

Physical Models > JAM

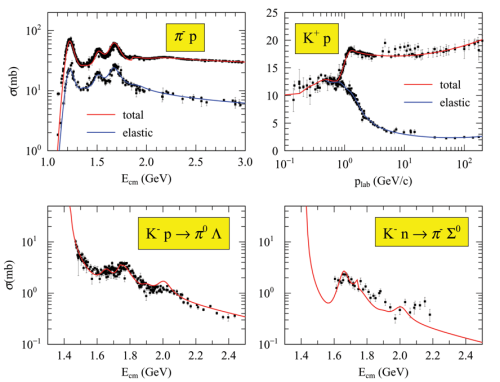

JAM is a Hadronic Cascade Model, which explicitly treats all established hadronic states including resonances with explicit spin and isospin as well as their anti-particles. We have parameterized all Hadron-Hadron Cross Sections, based on Resonance Model and String Model by fitting the available experimental data.

Reference:
Y.Nara et.al. Phys. Rev. C61 (2000) 024901

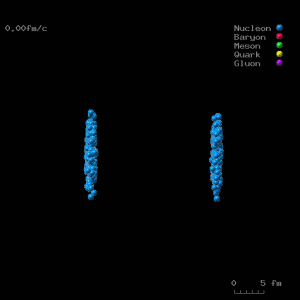

Au+Au 200GeV/u in cm

119 kinds of Mesons
170 kinds of Baryons
